שיטות התקנה:

שיטה מאווררת - Ventilated Façades

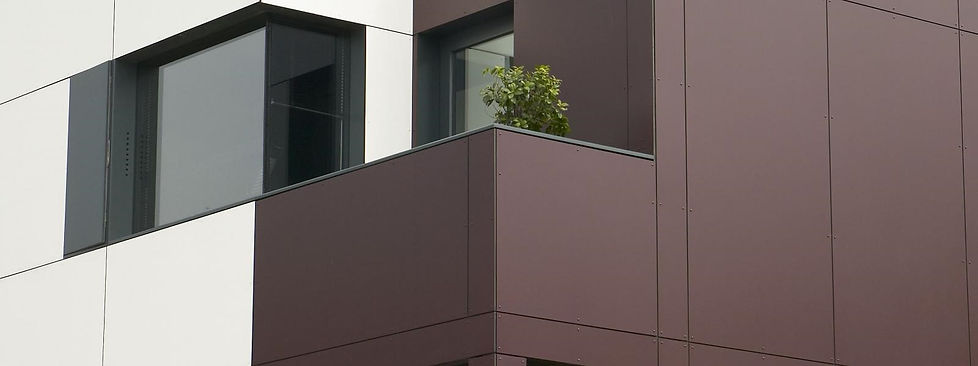

Multipurpose Housing, Milton Keynes, UK. TS150 Visible fixing with screws on a timber subframe

This document is intended to provide general recommendations only.

Trespa provides these guidelines and all testing, code and design data for informational purposes only and strongly advises that the customer, project owner and architect seek independent advice from a certified construction professional and/or engineer regarding application and installation as well as compliance with design requirements, applicable codes, laws and regulations, and test standards. Please check your local codes and applicable design requirements for proper use.

General

Trespa® Meteon® panels are installed as a component of rainscreen cladding or ventilated façade system. This “breathing” envelope system, employed the world over, can contribute a number of advantages to building designs.



Principle

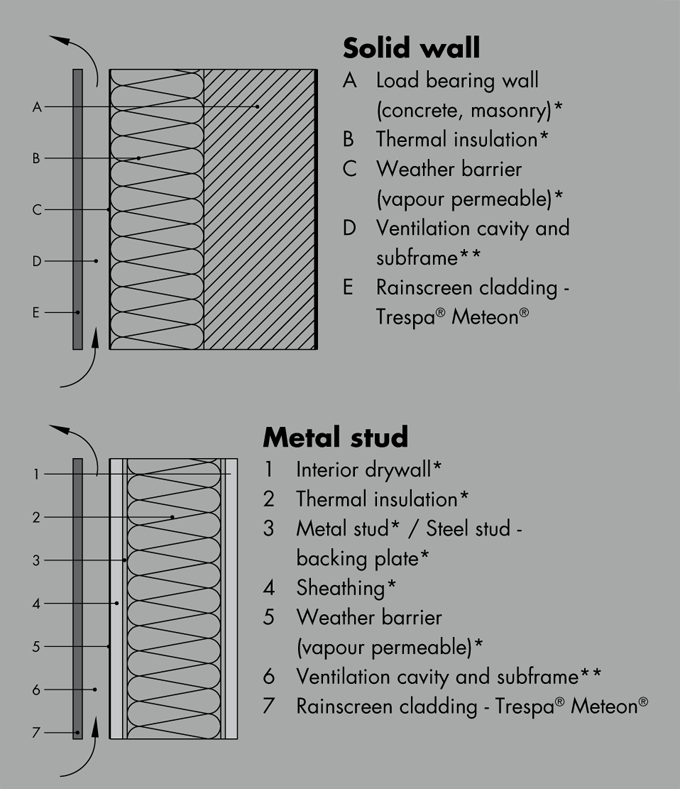

Ventilated façade system is a complete façade solution and entails the fixing of panels on a subframe, which is fixed to the structural façade. A ventilated façade system consists of the following structural items:

Rainscreen and decorative façade

Trespa® Meteon® panels cut to size are used as rainscreen and decorative façade, a building solution with both technical and aesthetic benefits. Joints between panels can remain open.

Cavity depth and ventilation

The free air cavity depth between the rainscreen cladding and the insulation or wall construction allows for ambient air to flow through from the ventilation inlets and outlets. For continuous ventilation behind the panel, a certain cavity depth between the rainscreen cladding and the insulation or wall construction is needed. The cavity depth as well as the minimum size of the ventilation inlets and outlets must be in accordance with applicable building standards, regulations and certificates.

For more details please visit www.trespa.info/meteon/fixingsystems

Insulation (optional)

Ventilated façades have a space between the cladding and the construction – an ideal location for insulation materials. Rain water and condensation are removed naturally by air flowing through the cavity so that the insulation material remains in good condition and remains effective over time.

Subframe

A ventilated façade can be constructed using different tested and certified fixing systems, each with their own advantages in terms of aesthetics (e.g. invisible fixing, joinery details), installation and performance, to fix Trespa® Meteon® panels on a subframe.

For more details, please visit www.trespa.info/meteon/fixingsystems

Ventilated Façades

Please check www.trespa.info for the latest version of this document.

* Not by Trespa
** For details about the ventilation cavity, subframe constructions and fixing systems, please visit
www.trespa.info.

Benefits

Ventilated façade systems as described above may result in a variety of advantages. First, a chimney effect draws air through the cavity, aiding in the removal of heat and moisture from rain or condensation. Second, the rainscreen blocks some solar gain and accommodates continuous insulation, considerably reducing air-conditioning. Third, these results are shown to improve comfort within occupied zones. Residents and users not only find themselves in a low-maintenance-environment, but the dry and comfortable conditions of the building may also make a positive contribution to Indoor Environmental Quality (IEQ).
